Aluminum Nitride Ceramic Plate Disc Industrial Ceramic Bending Processing Service

Brand Name : YH

Model Number : YH-A

Certification : ISO

Place of Origin : CHINA

MOQ : 10

Price : Negotiated

Payment Terms : L/C,T/T,Western Union

Supply Ability : 10000pcs per month

Delivery Time : 5-8weeks

Packaging Details : Carton

Coefficient Of Thermal Expansion : 4.5-5.3 x10^-6 /K

Dielectric Constant : 8.5-9.5

Operating Temperature Range : -40°C to 1000°C

Thermal Conductivity : 170-200 W/mK

Applications : Electronics, heat sinks, substrates

Surface Finish : Polished or as-sintered

Density : 3.26 g/cm³

Electrical Resistivity : 1x10^14 ohm-cm

Purity : 99.5% or higher

Material : Aluminum Nitride (AlN)

Breakdown Voltage : 10-15 kV/mm

Color : Light gray to white

Form Factor : Customizable shapes and sizes

Contact Now

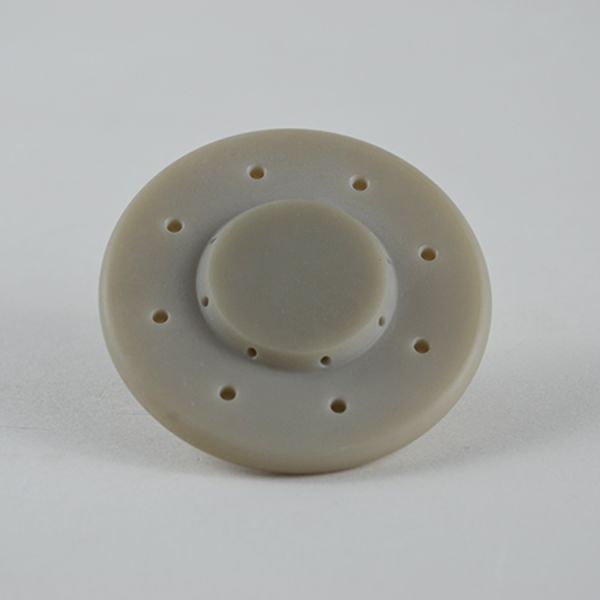

Aluminum Nitride Ceramic Plate Disc Industrial Ceramic Bending Processing Service

High-Power Semiconductor Chip Thermal Management

For high-power semiconductor chips that generate extreme heat during operation, thermal conductivity is the decisive factor for stable performance.

Our AlN ceramic special-shaped parts, boasting an exceptional 170 W/(m·K) thermal conductivity, are engineered to solve the most challenging heat dissipation issues.

Crafted from high-purity AlN ceramic sheets, plates and boards, these custom-machined components—including heat spreaders, thermal pads and chip

carriers—enable rapid and uniform heat transfer, effectively lowering chip operating temperatures. Unlike traditional thermal management materials,

they combine superior heat conductivity with excellent electrical insulation, preventing short circuits and signal interference. Customizable to fit diverse

chip sizes and packaging designs, our AlN special-shaped parts ensure extended chip lifespan, reduced failure rates and enhanced overall system reliability

for high-power semiconductor applications.

Aluminum Nitride Ceramic Plate Disc Industrial Ceramic Bending Processing Service

Application
Aluminum Nitride Part Application:
Here are the common purity levels of aluminum nitride powder (AlN) and their typical applications:
1. Industrial Grade Purity•Purity Range: 95% - 98%•Applications: Generally used in applications where high purity is not critical, such as basic ceramic

materials and composites.
2. High Purity•Purity Range: 99% - 99.5%•Applications: Suitable for most electronic packaging and thermal management applications, as well as

high-performance ceramic materials.
3. Ultra-High Purity•Purity Range: 99.5% - 99.99%•Applications: Used in advanced electronic packaging, LED packaging, and high-performance catalyst

supports where extremely high purity is required.
4. Special Purity•Purity Range: >99.99%•Applications: Used in specific scientific research and high-precision technology applications, such as

aerospace and military fields.
Selection Recommendations•Choose Based on Application Requirements: Different applications have different purity requirements. Selecting the appropriate purity can balance performance and cost.

			Regular Size

			Length x Width (mm)

			Thickness (mm)

2'' x 2''
(50.8 x 50.8)

 3'' x 3''
(76.2 x 76.2)

4'' x 4''
(101.6 x101.6)

4.5'' x 4.5''

			(114.3 x 114.3)

5'' x 5''
(127 x 127)

			 0.385

			 0.5

			 0.635

			 1.0

			Diameter (mm)

			Thickness (mm)

Φ16 Φ19 Φ20 Φ26Φ30 Φ35 Φ40 Φ45 Φ50 Φ52 Φ60 Φ75 Φ80

			1.0

			1.2

			1.5

			2.0

			2.5

Performance That Outperforms Alternatives


			Item

			Unit

			Reference Value

			Test method

			Thermal conductivity

			 W/m・K

			＞170

			Transient plane source method

			Surface roughness

			μm

			＜0.6

			Stylus surface roughness tester

			Warpage

			 /

			＜2.5‰

			Glass gauge

			Apparent density

			 g/cm3

			≥3.26

			Drainage method

			Bending strength

			 MPa

			＞300

			Three-point bending resistance method

			Volume resistance

			Ω・cm

			 1.5x1013 (TYP)

			Volume resistance gauge

			Dielectric constant

			 @1MHz

			 8.9 (TYP)

			Impedance method

			Dielectric loss

			 @1MHz

			4.6×10-4(TYP)

			Impedance method

			Break down voltage

			 Kv/mm

			36.85(TYP)

			DC power method

			Coefficient of linear expansion

			 1×10-6/℃

			 4.75(TYP)

			Thermomechanical a

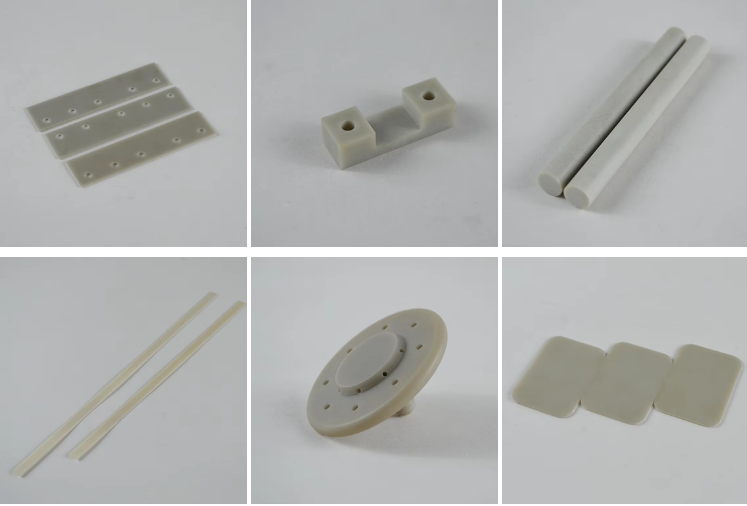

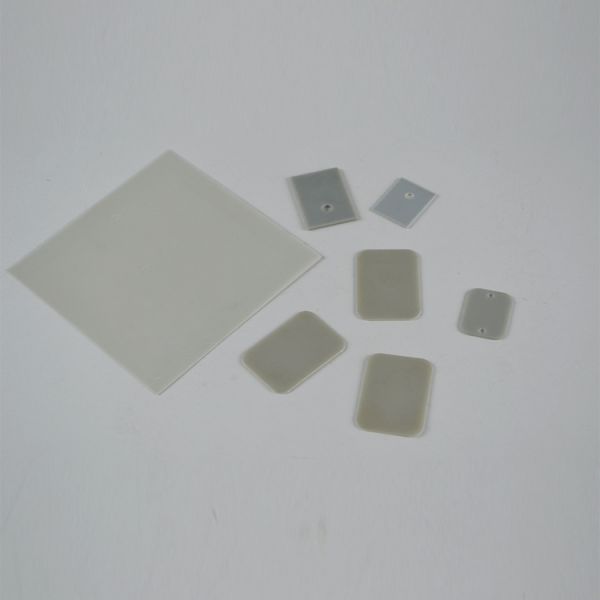

Various Types of Aluminum Nitride Sheets

We Can Do OEM and 0BM According to Your Drawing and Requirements.

Aluminum Nitride Ceramic Plate Disc Industrial Ceramic Bending Processing Service

Exceptional Material Properties:

Technical Superiority

* High Purity Material: >99% AlN composition with minimal impurities.

* Advanced Manufacturing: Pressureless sintering technology ensures uniform density.

* Precision Engineering: ±0.05mm dimensional tolerance guarantee.

* Multiple Finishes: As-fired, polished, or metallized surfaces available.

Quality Certifications

* ISO 9001:2015 Certified Manufacturing

* Batch-to-Batch Consistency Guarantee

* Full Traceability Documentation

* RoHS & REACH &CE Compliant

Aluminum Nitride Ceramic Plate Disc Industrial Ceramic Bending Processing Service

FAQ

Q1. Do you provide product samples? Yes, we provide samples subject to availability. A nominal sample fee may apply in some cases, and shipping costs are borne by the customer.

Q2. What are your accepted payment methods? We accept T/T (bank transfer) in advance, Western Union, Alipay, and PayPal.

Q3. What is your typical delivery lead time? Lead times vary depending on product requirements, including material selection, dimensions, and specific manufacturing processes.

Q4. Do you perform quality inspection before shipment? Yes, we conduct 100% inspection of all goods prior to delivery to ensure they meet specified standards.

Q5. What other ceramic materials do you offer? We supply a range of advanced ceramic materials, including Alumina, Zirconia, Aluminum Nitride,Boron Nitride, Silicon Nitride, Machinable Glass Ceramic, and related specialized ceramics.
