High Precision Alumina Ceramic Arm Robot for Semiconductor Customizable 99% Al2o3

Brand Name : YH

Model Number : YH

Certification : ISO,CE

Place of Origin : CHINA

MOQ : 10

Price : Negotiated

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 10000pcs per month

Delivery Time : 10-30days

Packaging Details : by caront or wooden case

Dielectric Strength : 15 KV/mm

Chemical Composition : Al2O3 (Aluminum Oxide)

Color : White Or yellow

Electrical Insulation : Excellent

Operating Temperature : Up to 1700°C

Low Thermal Expansion : Excellent

Biocompatibility : Yes

Alumina Content : 95-99.7%

Flexural Strength : 300 to 400 MPa

Thermal Conductivity : 20 to 30 W/m·K

Machinability : Difficult

Maximum Use Temperature : 1700c

Transparency : Opaque

Surface Finish : Polished

Contact Now

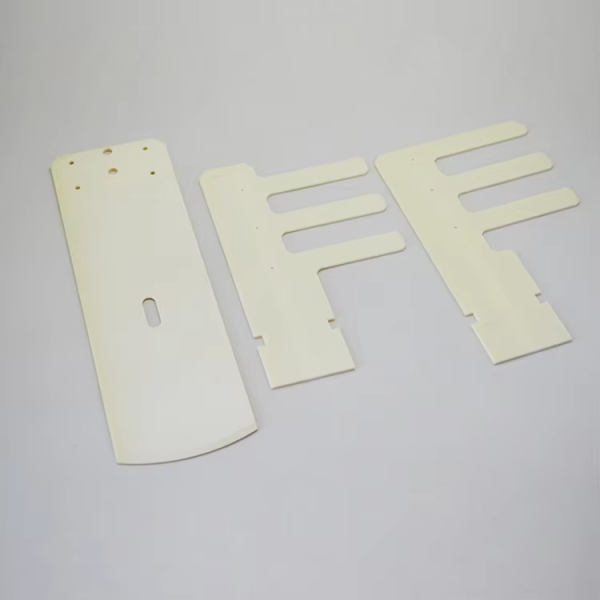

Alumina Ceramic Arm Robot for Semiconductor Customizable High Precision 99% Al2o3

Alumina Ceramic Arm Robot for Semiconductor: Precision Engineered for Cleanroom Operations

Looking for reliable robotic arms tailored for semiconductor manufacturing? Our alumina ceramic arm robot combines exceptional precision, high hardness, and cleanroom compatibility—ideal for wafer handling, chip packaging, and other critical semiconductor processes requiring contamination-free, high-stability operations. Factory-direct, customizable.

Key Advantages for Semiconductor Applications

High-Purity Alumina Ceramic: Non-outgassing, contamination-free, fully compliant with semiconductor cleanroom standards (Class 10/100)
Exceptional Precision: Tight dimensional tolerance control ensures smooth, accurate wafer/chip handling, reducing process errors.
Superior Mechanical Performance: High hardness, wear-resistant, and corrosion-resistant to harsh semiconductor process chemicals (acids, bases).
Customizable Design: Tailor length, structure, and end-effectors to match your specific semiconductor equipment specs.

High Precision Alumina Ceramic Arm Robot for Semiconductor Customizable 99% Al2o3

Application

Mechanical Properties

			Properties

			Unit

			95%Al2O3

			99%Al2O3

			99.5%Al2O3

			Colour

			--

			White

			Yellow

			Yellow

			Density

			g/cm³

			3.7

			3.85

			3.9

			Hardness

			GPa

			13.7

			15.2

			15.7

			Compressive Strength

			MPa

			2000

			2160

			2350

			Flexural Strength

			MPa

			280

			310

			350

			Fracture Toughness

			MPa・m1/2

			3~4

			3~4

			4.5

			Modulus of Elasticity

			GPa

			320

			360

			370

			Poissons Ratio

			--

			0.23

			0.23

			0.23

Thermal Properties

			Properties

			Unit

			95%Al2O3

			99%Al2O3

			99.5%Al2O3

			Maximum Use Temperature

			℃(No load)

			1650

			1650

			1650

			Thermal Conductivity @ 20°C

			W/(m・K)

			24

			29

			32

			Thermal Expansion a at 20–400°C

			1 x 10-6/°C

			7~8

			7~8

			7~8

			Specific Heat

			J/(kg・K)

			780

			790

			780

			Thermal Shock Resistance

			℃(Put in water)

			200

			200

			200

Electrical Properties

			Properties

			Unit

			95%Al2O3

			99%Al2O3

			99.5%Al2O3

			Dielectric Constant

			1MHz

			9.4

			9.9

			9.9

			Dielectric Strength

			V/m

			15 x 10 6

			15 x 10 6

			15 x 10 6

			Dielectric Loss

			1MHz

			4 x 10 -4

			4 x 10 -4

			4 x 10 -4

			Volume Resistivity @ 25°C

			Ω・cm

			>10 14

			>10 14

			>10 14

			Volume Resistivity @ 500°C

			Ω・cm

			>10 8

			>10 8

			>10 10

Various Types of Alumina Ceramic Part

We Can Do OEM and 0BM According to Your Drawing and Requirements.

Features of alumina ceramic* Relatively low density;

* Extremely high operating temperature;

* Very high hardness and compressive strength;

* Excellent electrical insulation properties;

* Corrosion and wear resistance;

* Biologically inert, food compatibility.
Alumina Ceramic PropertiesThe following only lists the performance parameters of the three most common aluminum oxide ceramics. Normally, alumina ceramics

are composed of these types

Packing

			Hunan Yuanhong New Material Co.,Ltd was established in 2016 ,there are over 100 sets of ceramic professional equipments , several types of furnace in more than 8000 square meters production workshops. ISO9001 certified, a variety of advanced ceramic materials are ROHS and REACH certified.

FAQ
Q1. Do you provide product samples? Yes, we provide samples subject to availability. A nominal sample fee may apply in some cases, and shipping costs are borne by the customer.

Q2. What are your accepted payment methods? We accept T/T (bank transfer) in advance, Western Union, Alipay, and PayPal.

Q3. What is your typical delivery lead time? Lead times vary depending on product requirements, including material selection, dimensions, and specific manufacturing processes.

Q4. Do you perform quality inspection before shipment? Yes, we conduct 100% inspection of all goods prior to delivery to ensure they meet specified standards.

Q5. What other ceramic materials do you offer? We supply a range of advanced ceramic materials, including Alumina, Zirconia, Aluminum Nitride,Boron Nitride, Silicon Nitride, Machinable Glass Ceramic, and related specialized ceramics.
