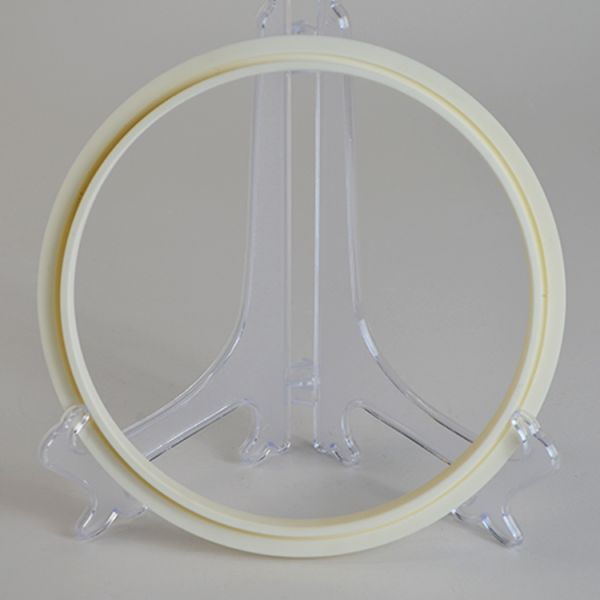

95% Alumina Ceramic Ring Large Size Insulating Heat Resistance Loop Ceramic Components

Brand Name : YH

Model Number : Yh

Certification : ISO，CE，ROHS

Place of Origin : CHINA

MOQ : 10

Price : Negotiated

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 10000pcs per month

Delivery Time : 10-30days

Packaging Details : by caront or wooden case

Applications : Electrical insulators, cutting tools, wear parts, biomedical implants

Dielectric Loss : 0.0002

Flexural Strength : 300 to 400 MPa

Color : White to off-white

Temperature Resistance : Up to 1600°C

Manufacturing Method : Dry Pressing or Isostatic Pressing

Surface Finish : Polished

Maximum Use Temperature : 1600°C

Tensile Strength : 200 MPa

Density : 3.8 to 3.95 g/cm³

Contact Now

95% Alumina Ceramic Ring Large Size Insulating Heat Resistance Loop Alumina Ceramic

Superior Sealing Performance: Alumina Ceramic Sealing Rings!

Designed for industrial sealing scenarios, our alumina ceramic sealing rings combine exceptional airtightness

with extreme environmental resistance. Crafted from 95%/99%/99.5% high-purity alumina,

they withstand high temperatures (-40℃~1600℃), corrosive media and high pressure, ensuring leak-free operation.

✅ Ideal for: High-temperature furnaces, chemical pipelines, industrial valves

✅ Advantages: Wear-resistant, long service life, low maintenance cost

Application

Mechanical Properties

			Properties

			Unit

			95%Al2O3

			99%Al2O3

			99.5%Al2O3

			Colour

			--

			White

			Yellow

			Yellow

			Density

			g/cm³

			3.7

			3.85

			3.9

			Hardness

			GPa

			13.7

			15.2

			15.7

			Compressive Strength

			MPa

			2000

			2160

			2350

			Flexural Strength

			MPa

			280

			310

			350

			Fracture Toughness

			MPa・m1/2

			3~4

			3~4

			4.5

			Modulus of Elasticity

			GPa

			320

			360

			370

			Poissons Ratio

			--

			0.23

			0.23

			0.23

Thermal Properties

			Properties

			Unit

			95%Al2O3

			99%Al2O3

			99.5%Al2O3

			Maximum Use Temperature

			℃(No load)

			1650

			1650

			1650

			Thermal Conductivity @ 20°C

			W/(m・K)

			24

			29

			32

			Thermal Expansion a at 20–400°C

			1 x 10-6/°C

			7~8

			7~8

			7~8

			Specific Heat

			J/(kg・K)

			780

			790

			780

			Thermal Shock Resistance

			℃(Put in water)

			200

			200

			200

Electrical Properties

			Properties

			Unit

			95%Al2O3

			99%Al2O3

			99.5%Al2O3

			Dielectric Constant

			1MHz

			9.4

			9.9

			9.9

			Dielectric Strength

			V/m

			15 x 10 6

			15 x 10 6

			15 x 10 6

			Dielectric Loss

			1MHz

			4 x 10 -4

			4 x 10 -4

			4 x 10 -4

			Volume Resistivity @ 25°C

			Ω・cm

			>10 14

			>10 14

			>10 14

			Volume Resistivity @ 500°C

			Ω・cm

			>10 8

			>10 8

			>10 10

Various Types of Alumina Ceramic Sealing Ring

We Can Do OEM and 0BM According to Your Drawing and Requirements.

95% Alumina Ceramic Ring Large Size Insulating Heat Resistance Loop Ceramic Components

Features of alumina ceramic* Relatively low density;

* Extremely high operating temperature;

* Very high hardness and compressive strength;

* Excellent electrical insulation properties;

* Corrosion and wear resistance;

* Biologically inert, food compatibility.
Alumina Ceramic PropertiesThe following only lists the performance parameters of the three most common aluminum oxide ceramics.
Normally, alumina ceramics are composed of these types

Packing

FAQ
Q1. Do you provide product samples? Yes, we provide samples subject to availability. A nominal sample fee may apply in some cases, and shipping costs are borne by the customer.

Q2. What are your accepted payment methods? We accept T/T (bank transfer) in advance, Western Union, Alipay, and PayPal.

Q3. What is your typical delivery lead time? Lead times vary depending on product requirements, including material selection, dimensions, and specific manufacturing processes.

Q4. Do you perform quality inspection before shipment? Yes, we conduct 100% inspection of all goods prior to delivery to ensure they meet specified standards.

Q5. What other ceramic materials do you offer? We supply a range of advanced ceramic materials, including Alumina, Zirconia, Aluminum Nitride,Boron Nitride, Silicon Nitride, Machinable Glass Ceramic, and related specialized ceramic
